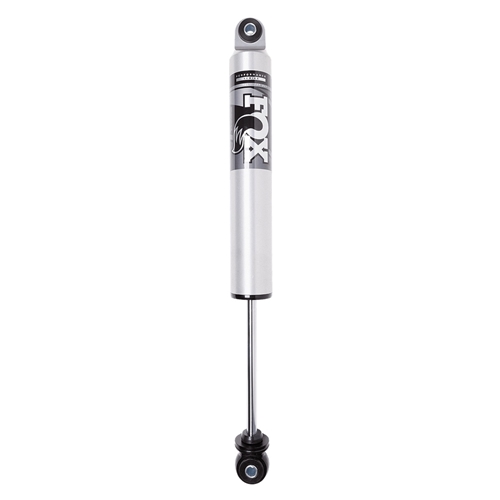

Fox 2.5 Performance Series HTO IFP Shocks - Universal
Part #:FOX-987-24-036
Availability:In Stock
Free Shipping
Rating:
Extended Length (in): 17.78; Compressed Length (in): 12.69; Travel (in): 5.09; Top Mount: EB2; Bottom Mount: EB2; Body Diameter (in): 2.5; Body Material: Aluminum; Reservoir Type: Internal Floating Piston; Type: Smooth Body; Series: Performance
Universal Fitment - Must Match Both Lengths (Extended And Compressed) And Mounting Style To Your Setup.
Installation Instructions: Click Here
Universal Fitment - Must Match Both Lengths (Extended And Compressed) And Mounting Style To Your Setup.
Installation Instructions: Click Here
Price: $346.95
- 2.5” Impact extruded 6061-T6 aluminum shock body
- Type II clear-anodized body plating
- High-flow velocity-sensitive damping
- 5/8” hard chrome shaft
- Internal floating piston (IFP)
- Hydraulic Top Out (HTO) piston
FOX 2.5 Performance Series HTO shock is a bolt-on shock loaded with position-sensitive technology, vehicle-specific valving, and larger pistons to improve on and off-road performance. A type II anodized aluminum body efficiently dissipates heat and prevents corrosion. The 2.5-inch shock body features an internal floating piston (IFP) to separate the shock oil from the high-pressure nitrogen, optimizing damping.
Hydraulic Top Out (HTO) technology offers usable position-sensitive rebound damping control on and off the pavement. HTO reduces harsh top-outs and increases comfort by forcing shock oil through a secondary shim stack to slow down shock shaft speed; HTO is particularly beneficial after installing heavier, aggressive tires and applications lifted higher than OEM specification.
Bolt-on 2.5 Performance Series HTO shocks to increase damping capacity and ride in comfort with position-sensitive rebound control.
