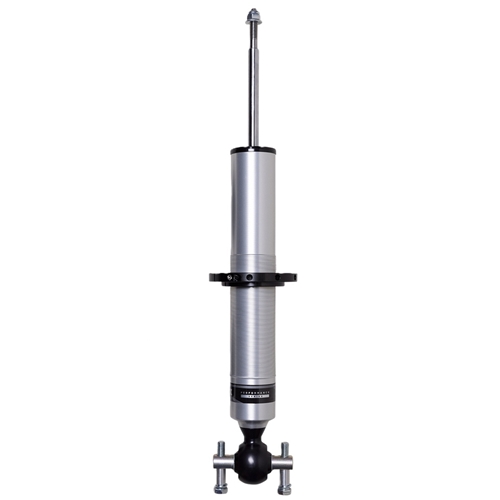

Fox 2.5 Performance Series Snap Ring Coilover HTO IFP Shocks
This item requires Vehicle Fitment, please select Vehicle first!
OR if you know the Part Number you need, select from Options below.
OR if you know the Part Number you need, select from Options below.
Part #:FOX-987-62-000
Availability:In Stock
Free Shipping
Rating:
Does NOT Fit Raptor Models. Sasquatch Models Fit 0-1in Lift. Re-Use OEM Springs And Top Mount Hardware. Lift Height: 0-2in. Position: Rear.
Extended Length (in): 22.71; Compressed Length (in): 17.20; Travel (in): 5.51; Top Mount: OEM; Bottom Mount: OEM; Body Diameter (in): 2.5; Body Material: Aluminum; Reservoir Type: Internal Floating Piston; Type: Coil-Over; Series: Performance;
Extended Length (in): 22.71; Compressed Length (in): 17.20; Travel (in): 5.51; Top Mount: OEM; Bottom Mount: OEM; Body Diameter (in): 2.5; Body Material: Aluminum; Reservoir Type: Internal Floating Piston; Type: Coil-Over; Series: Performance;
Price: $494.95
- 2.5” Impact extruded 6061-T6 aluminum shock body
- Type II clear-anodized body plating
- High-flow velocity-sensitive damping
- 5/8” hard chrome shaft
- Internal floating piston (IFP)
- Hydraulic Top Out (HTO) piston
- Reuses existing OE spring
FOX 2.5 Performance Series HTO shock is a bolt-on shock loaded with position-sensitive technology, vehicle-specific valving, and larger pistons to improve on and off-road performance. A type II anodized aluminum body efficiently dissipates heat and prevents corrosion. The 2.5-inch shock body features an internal floating piston (IFP) to separate the shock oil from the high-pressure nitrogen, optimizing damping. The 2.5-inch HTO shocks reuses the existing OE spring.
Hydraulic Top Out (HTO) technology offers usable position-sensitive rebound damping control on and off the pavement. HTO reduces harsh top-outs and increases comfort by forcing shock oil through a secondary shim stack to slow down shock shaft speed; HTO is particularly beneficial after installing heavier, aggressive tires and applications lifted higher than OEM specification.
Bolt-on 2.5 Performance Series HTO shocks to increase damping capacity and ride in comfort with position-sensitive rebound control.
California Residents: Prop 65 Warning
Customer Reviews
Fox 2.5 Performance Series Snap Ring Coilover HTO IFP Shocks fits the following vehicle(s):
- 2021 Ford Bronco
- 2022 Ford Bronco
- 2023 Ford Bronco
- 2024 Ford Bronco
- 2025 Ford Bronco
- 2026 Ford Bronco
