UWS Hammerhead Tank
Part #:UWS-ST-100HH-W
Availability:In Stock
Free Shipping
Will not fit compact or midsize trucks (review dimensions to verify fitment); will not fit short-bed trucks with gooseneck (75-gallon tank recommended). This tank is DOT-compliant for transporting Class 3 combustible fuels only, such as diesel.. Includes transfer tank only (mounting hardware not included); LTL shipping only, no parcel; lockable cap requires padlock (not included) Cap adds 2-3/4" to overall height. Inspect system monthly. Remove all liquid contents prior to tank relocation.
Product Specifications:
Finish: White Powder Coat
Latch Type: Paddle Handles
Tank Capacity: 100-Gallon Tank
Tank Style: L-Shaped Tank
- Fits all full-size trucks, featuring a narrow base to fit between wheel wells
- Industry-first steel-aluminum combo weighs less than full-steel models
- Unique, smooth finish offers a sleek look compared to diamond plate
- Heavy-duty 14-gauge steel tank is 100% pressure-tested for safety
- .080" thick aluminum tool box is lightweight and non-corrosive
- Transfers diesel or other non-flammable liquids to on-site vehicles or equipment
- Built-in tool box provides added storage without reducing truck bed space
- Patented RigidCore foam-filled lid to maximize strength and prevent binding
- Lockable, commercial-grade vented cap with reinforced collar for added security
- Built-in drain plug for easy and complete emptying as needed
- 1/8" steel tabs for a solid install and built-in lift hooks for easy relocation
- Internal baffles for extra strength and an even flow of liquid
- Stainless steel lock handles with connecting rod for operation from either side
- Lid self-opens to 90 degrees and self-closes for convenient operation
- Box-tank attachment through-bolted with neoprene washers for water resistance
- Assembled in the USA - limited lifetime warranty (one-year finish, one-year parts)

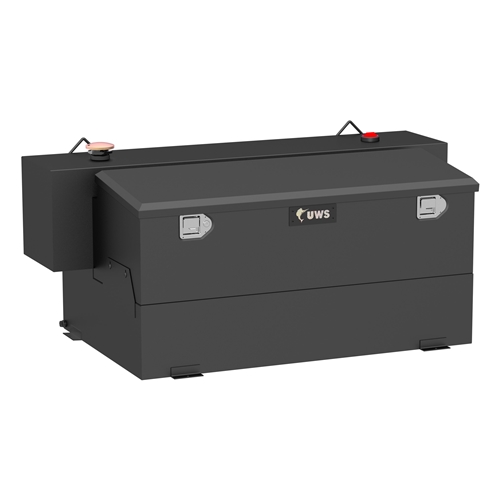

The hammerhead-style transfer tank is engineered to be the universal transfer tank for all full-size trucks. It features a unique narrowed base that fits between the wheel wells in the truck bed, even on short-bed pickup trucks (verify fitment using the product dimensions). This innovative transfer tank is ideal for safely and effectively transporting diesel and other non-flammable liquids. It is constructed with 14-gauge, pressure-tested steel and has a durable matte black powder coat finish. The hammerhead-style transfer tank is also equipped with a lockable, vented cap that allows for easy filling and provides extra security when your truck is left unattended. It comes with internal baffles to promote a smooth flow of liquids and to help prevent sloshing. For easier movement and installation, the tank comes with integrated mounting tabs and lifting hooks. Finally, to easily drain the tank whenever necessary, a drain plug is integrated into the base. This hammerhead-style transfer tank is a tool box transfer tank combo, featuring an integrated truck tool box for secure, convenient storage of your tools and equipment. The combo design is an innovative combination of a steel tank and an aluminum tool box, resulting in a lighter-weight solution compared to full-steel models. The truck tool box is constructed with extra-thick aluminum, a RigidCore foam-filled lid for maximum strength and stainless steel locking handles for dependable security. NOTE: Will not fit short-bed trucks with a gooseneck hitch installed (75-gallon transfer tank recommended).
